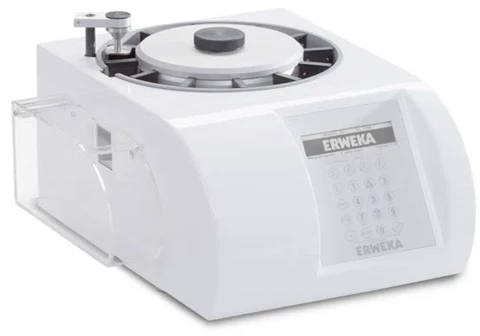

ERWEKA TBH 425 TDThe star-shaped rotary magazine of the THB 425 enables semi-automatic testing of up to ten samples.
Automatic measurement can be taken for tablet hardness and thickness, diameter (for round tablets) or length (for oblongs)..
It has a measuring range of 3 - 500 N for hardness, 2.0 - 10 mm for thickness, and 2 - 28 mm for diameter.
100% USP / EP / JP compliant.
TECHNICAL DATA |
|
|
Weight |
15 kg |
|
Dimensions (H x W x D) |
240 x 350 x 375 mm |
|
Voltage |
100 - 240 V / 50 - 60 Hz |
|
Interfaces |
SD card, Ethernet (LAN),1x USB-A and 1x USB-B interface for printer |
|
Hardness range |
3 - 500 N ± 1 N |
|
Diameter/length |
2 - 28 mm (± 0.05 mm) |
|
Thickness |
2.0 - 10 mm (± 0.05 mm) |
|
Weight |
20.0 mg - 64 g** (± 0.1 mg) |
|
Constant speed |
0.1 - 3 mm/sec. |
|
Constant force |
10 - 200 N/sec. |
|
Calibration |
Weights (statistic calibration) |
|
Star Feeder magazine |
10-chamber star feeder with brushes for cleaning the transport way |
